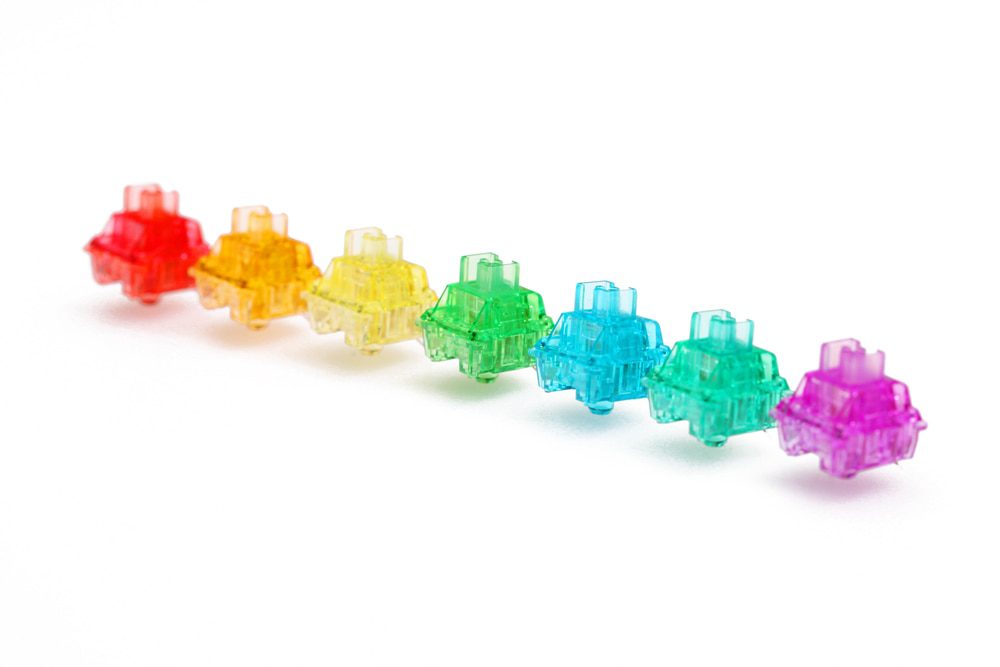

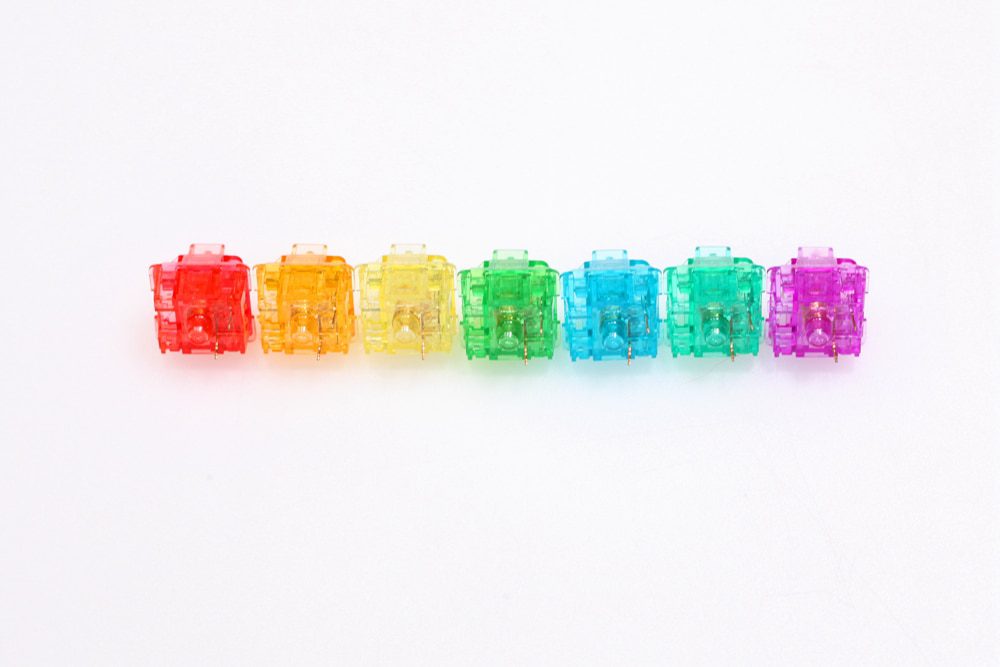

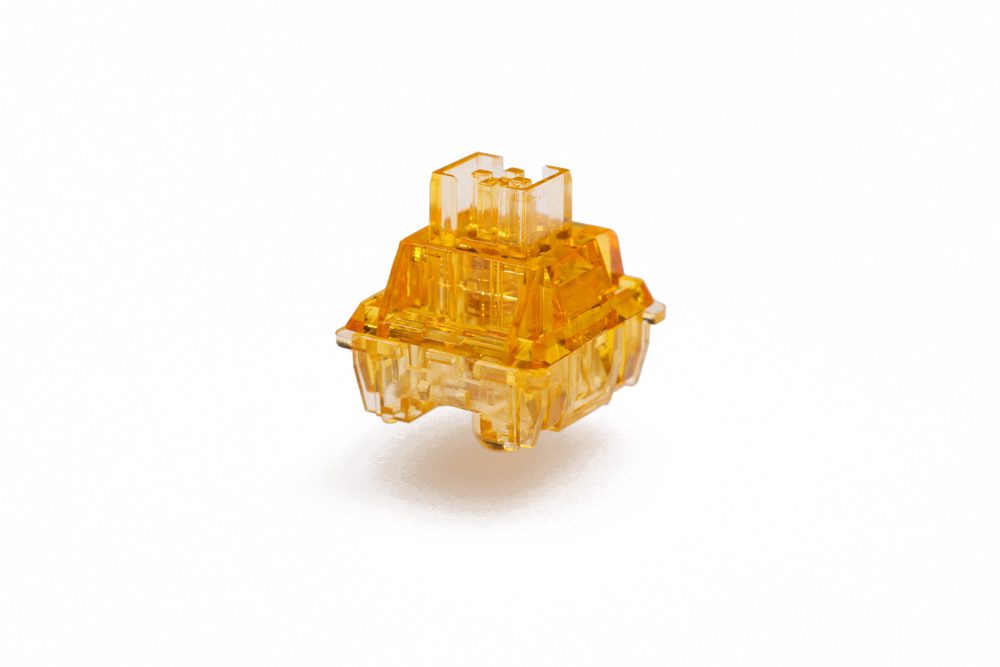

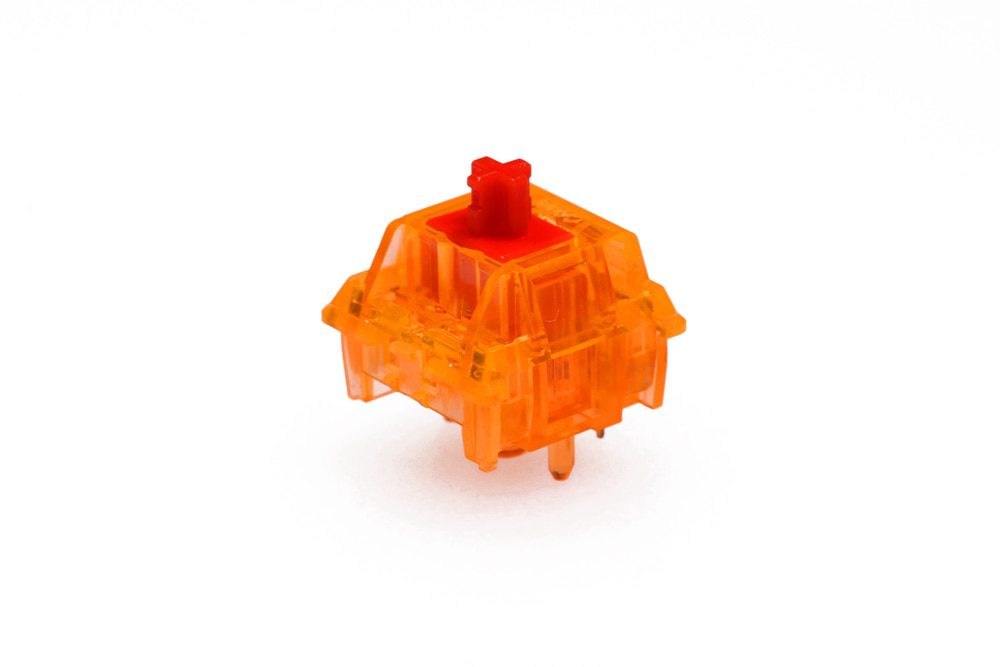

Candy Rainbow Switches
Specification :
● 1.Rating :12 VAC/DC max. 2 VDC min.
10mA AC/DC max. 10μA DC min.
● 2.Contact Resistance : 200mΩ Max
● 3.Insulation Resistance :100MΩ Min
(DC100V)
● 4.Withstand Voltage :AC500V(50-60Hz)
for 1 minute
● 5.Bounce Time:≤5msec (at 16 in/sec.
actuation speed)
● 6.Operation Force :60±5gf
● 7.End Force :75±5gf
● 8.Pretravel:2.0±0.4mm
● 9.Total travel:4.0+0/-0.4mm
● 10.Operating Life :80,000,000 Cycles
Pls Pay Attention: Switch Only

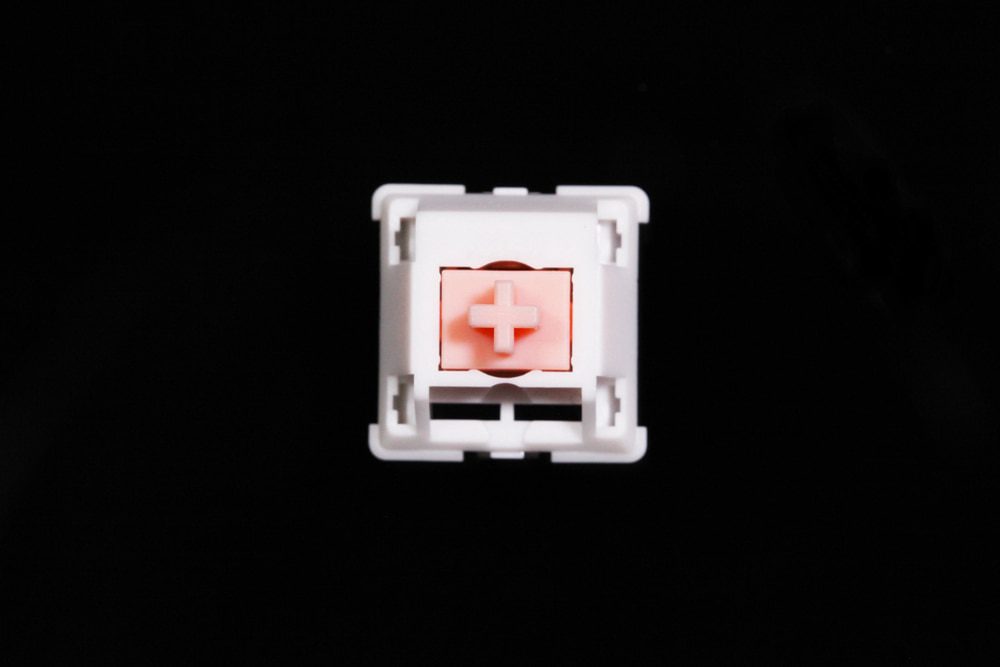

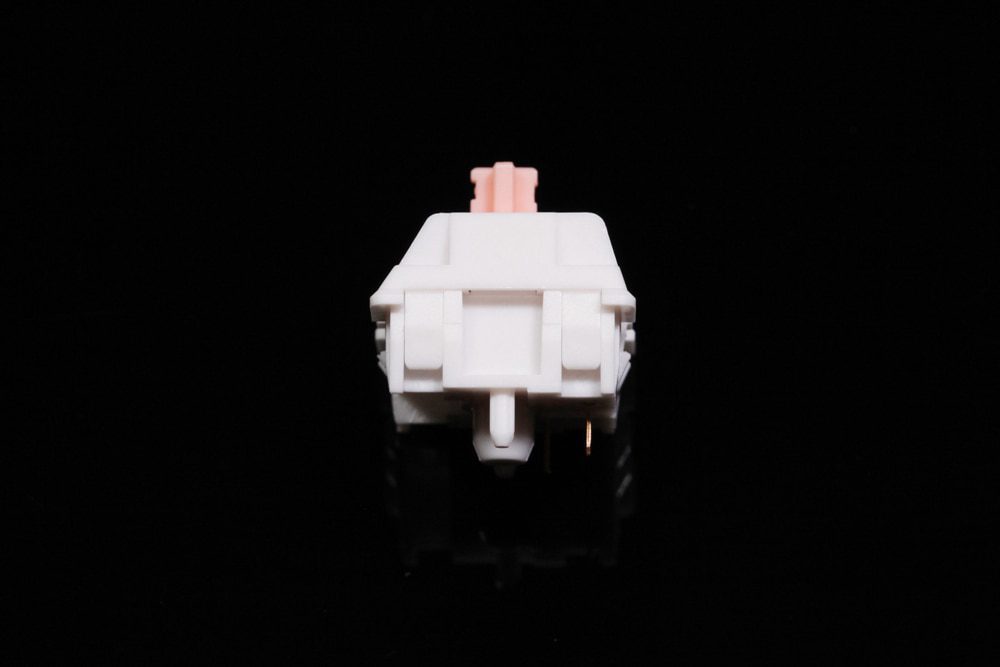

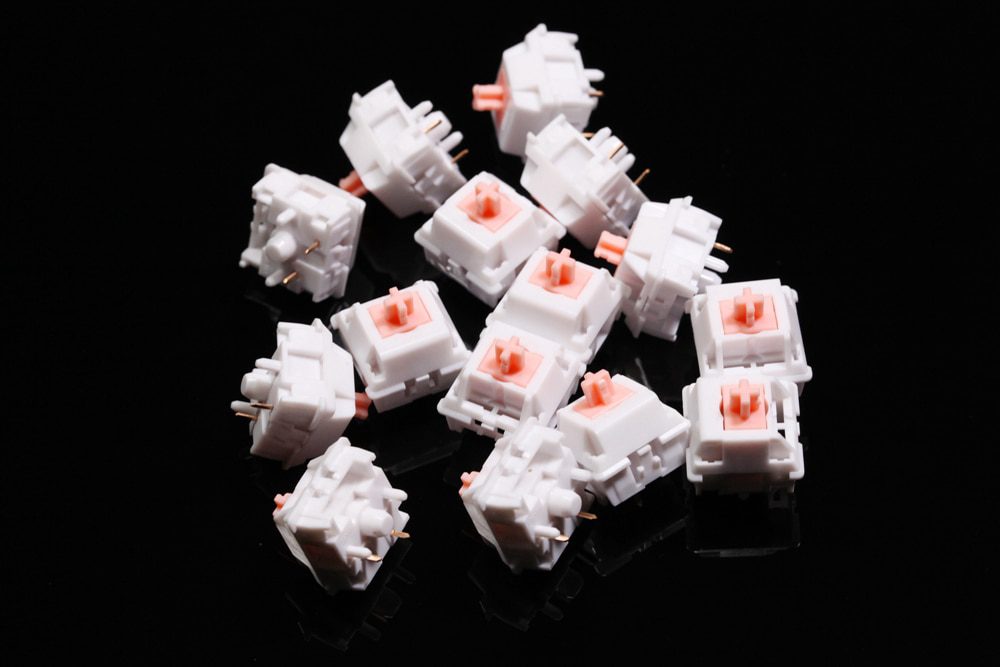

Candy Sakura Snow Switches
Spec
Technical Data：
• Tactile Switch.
• Switching voltage: 12 V AC/DC max.
• Switching current: 10 mA AC/DC max.
• Dielectric strength: 500 V / 50Hz
• Durability: 50 million actuations
• Actuator travel: 4.0 ± 0.3 mm
• Pretravel: 2.0 ± 0.5 mm
• Initial force: 45gf or 50gf.
• Actuation Force: 62gf or 65gf
• Per-switch LED compatibility: SMD and through-hole

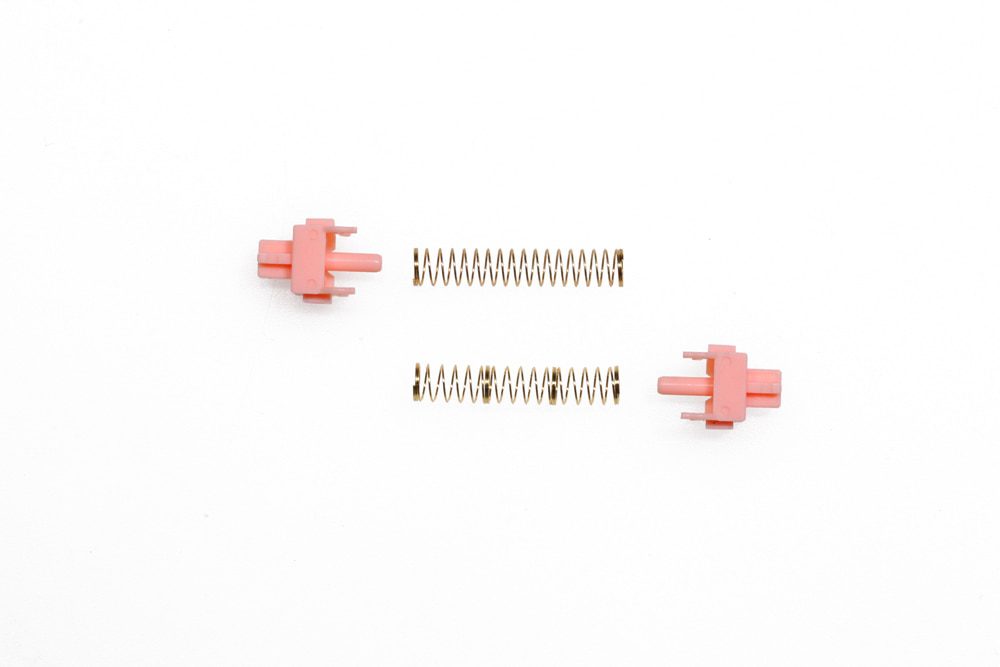

• Gold Plated Long Spring(About 22mm) 65g is Symmetric Long Springs, 62g is standard Springs
• MX-compatible
• Storage Temperature: 5°C to 40°C
• Operating Temperature: -40°C to 70°C

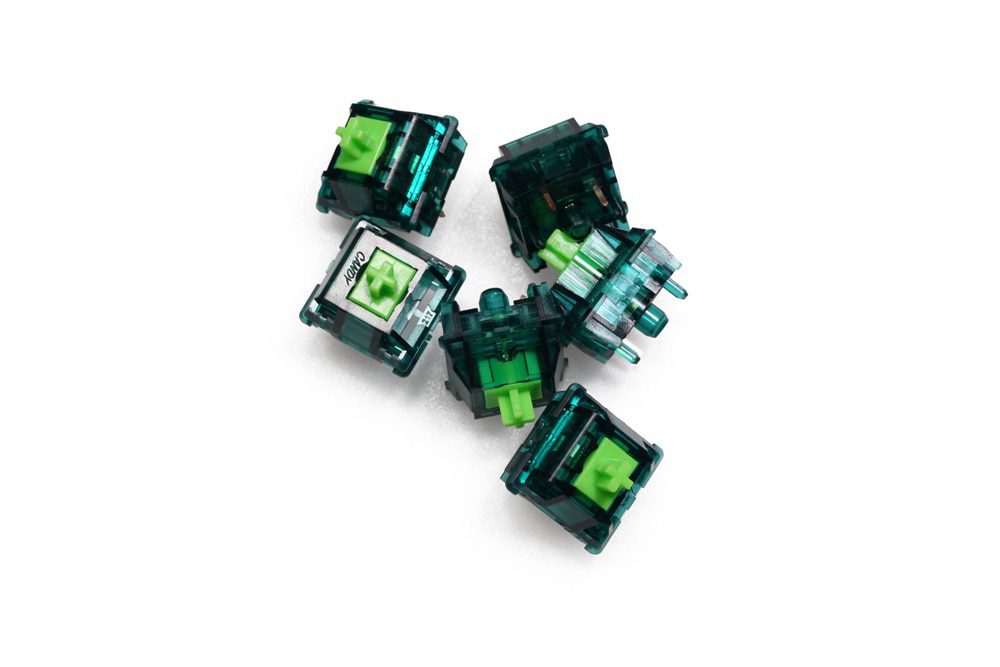

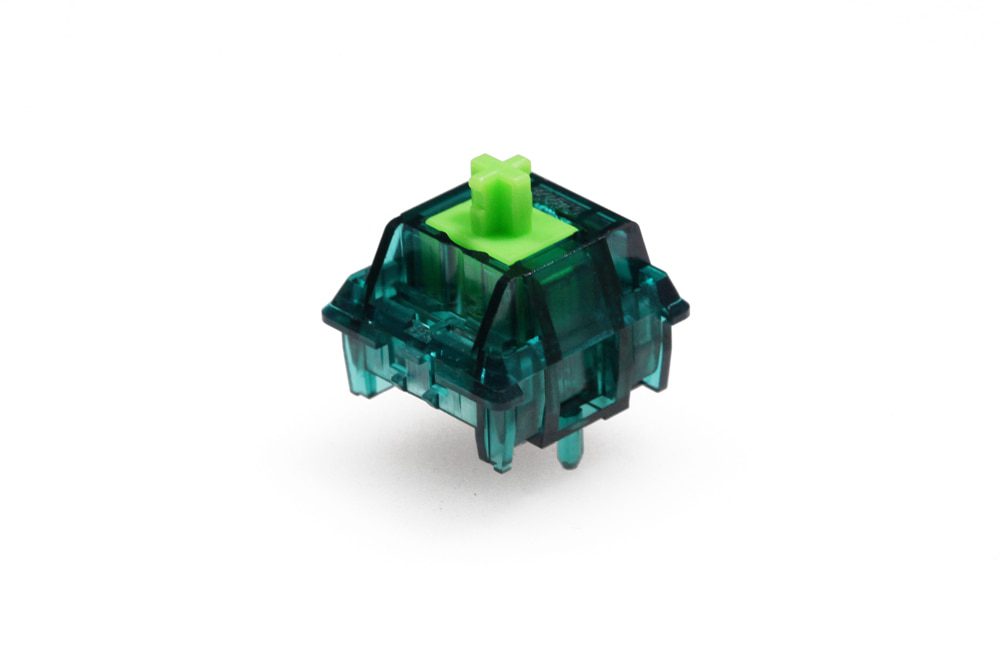

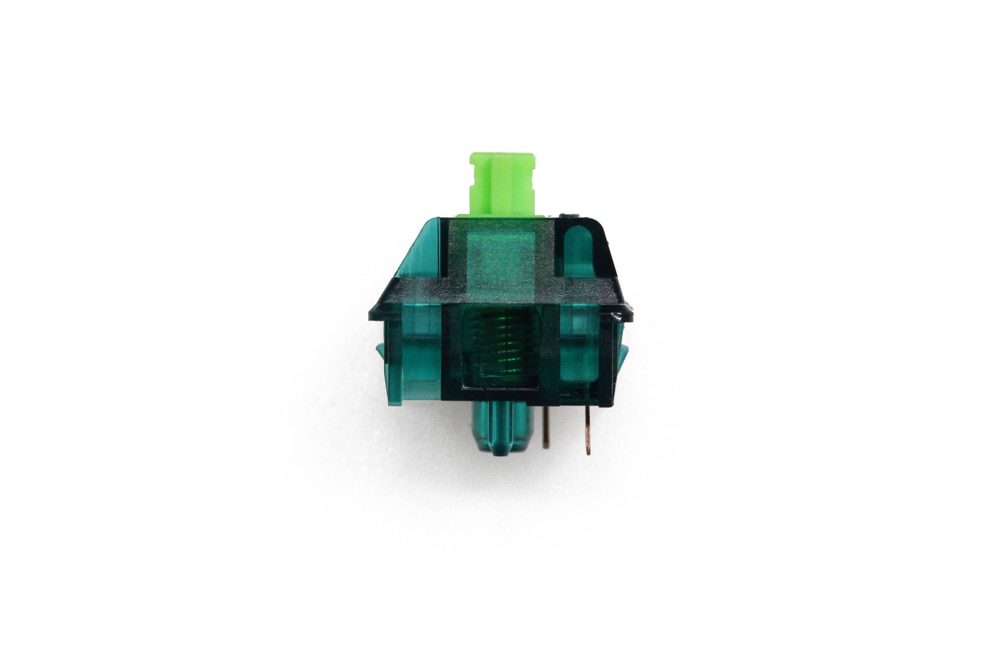

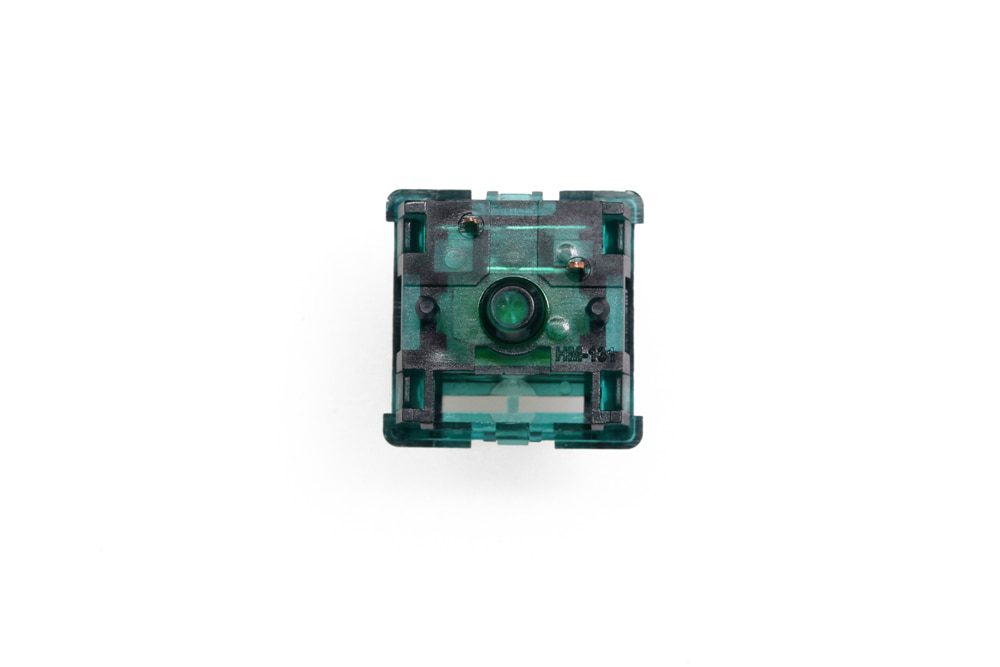

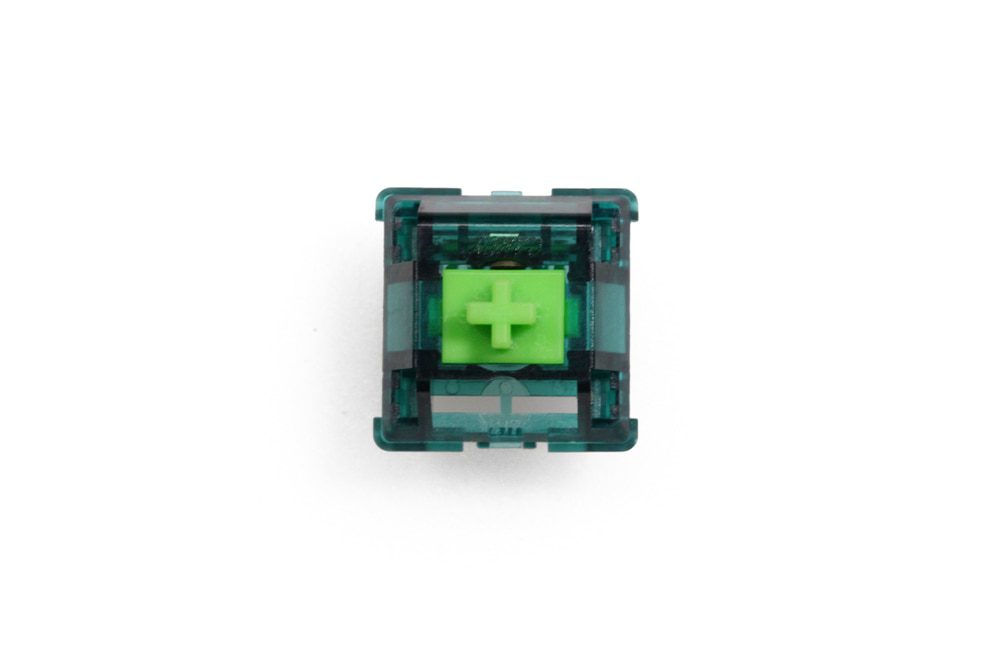

Candy Green Jade Switches
Spec
Technical Data：
• Switching voltage: 12 V AC/DC max.
• Switching current: 10 mA AC/DC max.
• Dielectric strength: 500 V / 50Hz
• Durability: 50 million actuations
• Actuator travel: 4.0 ± 0.3 mm
• Pretravel: 2.0 ± 0.5 mm
• Initial force: 37gf or 45gf.
• Actuation Force: 55gf or 62gf
• Per-switch LED compatibility: SMD and through-hole
• Gold Plated Long Spring(About 22mm)
• MX-compatible
• Storage Temperature: 5°C to 40°C
• Operating Temperature: -40°C to 70°C

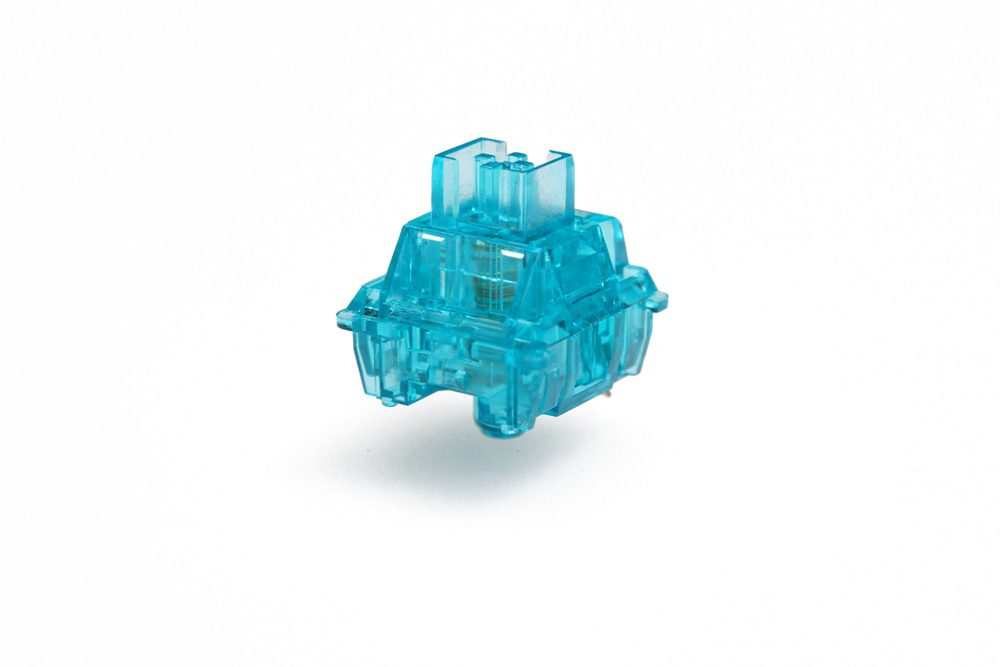

Candy BL Switches
Spec
Technical Data：
• Tactile Switch.
• Switching voltage: 12 V AC/DC max.
• Switching current: 10 mA AC/DC max.
• Dielectric strength: 500 V / 50Hz
• Durability: 50 million actuations
• Actuator travel: 4.0 ± 0.3 mm
• Pretravel: 2.0 ± 0.5 mm
• Initial force: 45gf or 50gf.
• Actuation Force: 62gf or 65gf
• Per-switch LED compatibility: SMD and through-hole
• Gold Plated 3 step Long Spring(About 22mm)
• MX-compatible
• Storage Temperature: 5°C to 40°C
• Operating Temperature: -40°C to 70°C
Pls Pay Attention: Switch Only
