Specifications
– Premium CNC Case & 82-key layout
– Hotswap terminal, Compatible with 3/5-pin mechanical switches, supports Cherry Switch/ Gateron Switch/ Kailh BOX Switch and etc
– Screw-in and Plate-Mounted Stabilizers Available
– Detachable Type-C cable & RGB SMD light

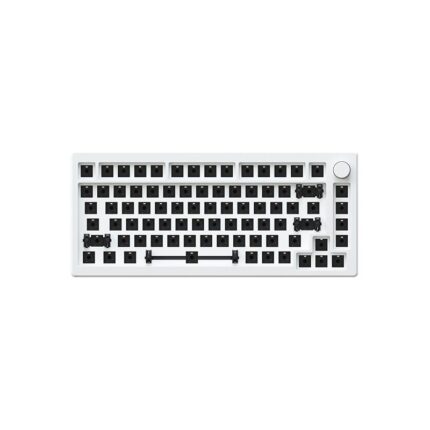

Difference between MOD006 and MOD007v2

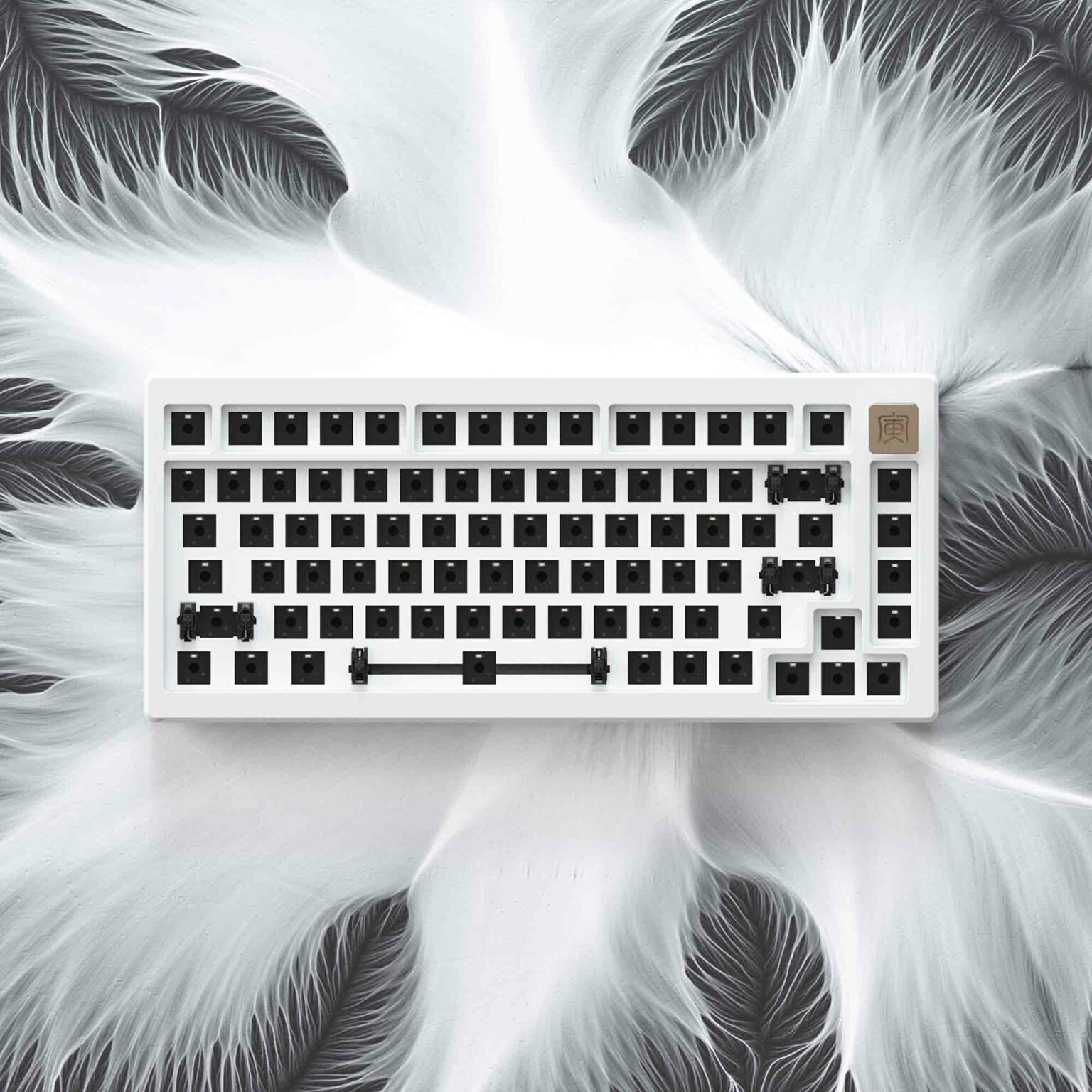

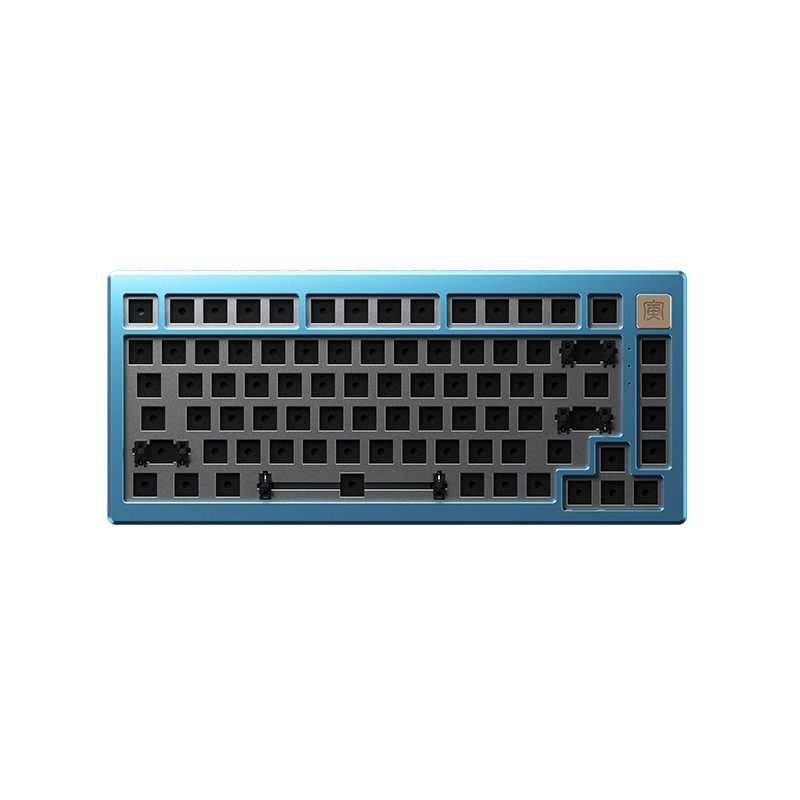

MOD006 has the exact same specification as MOD007v2 but the knob has been replaced by a screw-in customizable badge.
The character “寅” on the default badge means the Year of Tiger.
The badge is fully interchangeable and can be removed to gain an extra switch slot.
(3D print file of the badge will be available to achieve further customization)
Basic Spec:
Comes with both aluminum and polycarbonate plates;
Gasket Mount: the aluminum plate comes with silicon gasket (to avoid misplacement) by default with spare poron gaskets;
MOD006 will no longer come as pre-assembled (screws provided), making it easier for users to mod. And to ensure it is equivalently user-friendly for beginners, the aluminum plate, PCBA and sound dampening foams will be pre-assembled;
Comes with both poron plate foam and bottom case foam, specifically the case foam are pre-cut against the hot-swappable sockets to reduce unnecessary space for improved sound profile;
Poron switch pads added to the kit;
Reduced PCBa thickness from 1.6mm to 1.2mm to increase the softness, and be compatible with more screw-in stabilizers;
Black Coiled Cable.
Upgrade Your TKL Keyboard
AKKO MOD006 kit is designed with TKL layout to be more suitable for compact and traditional typing habit. This keyboard kit
allows you to upgrade your TKL keyboard from the common to your unique one. Choose the solemn and heavy
CNC case, and make your keyboard be truly yours!
TKL Layout Hotswap Keyboard Kit
AKKO MOD006 kit is equipped with hot swappable terminals, with which you can install the switches directly without soldering.
It's compatible with any north-facing 3/5-pin mechanical switches such as Cherry MX switches, Kailh switches and
Gateron switches. You can easily build up your own mechanical keyboard with this kit.

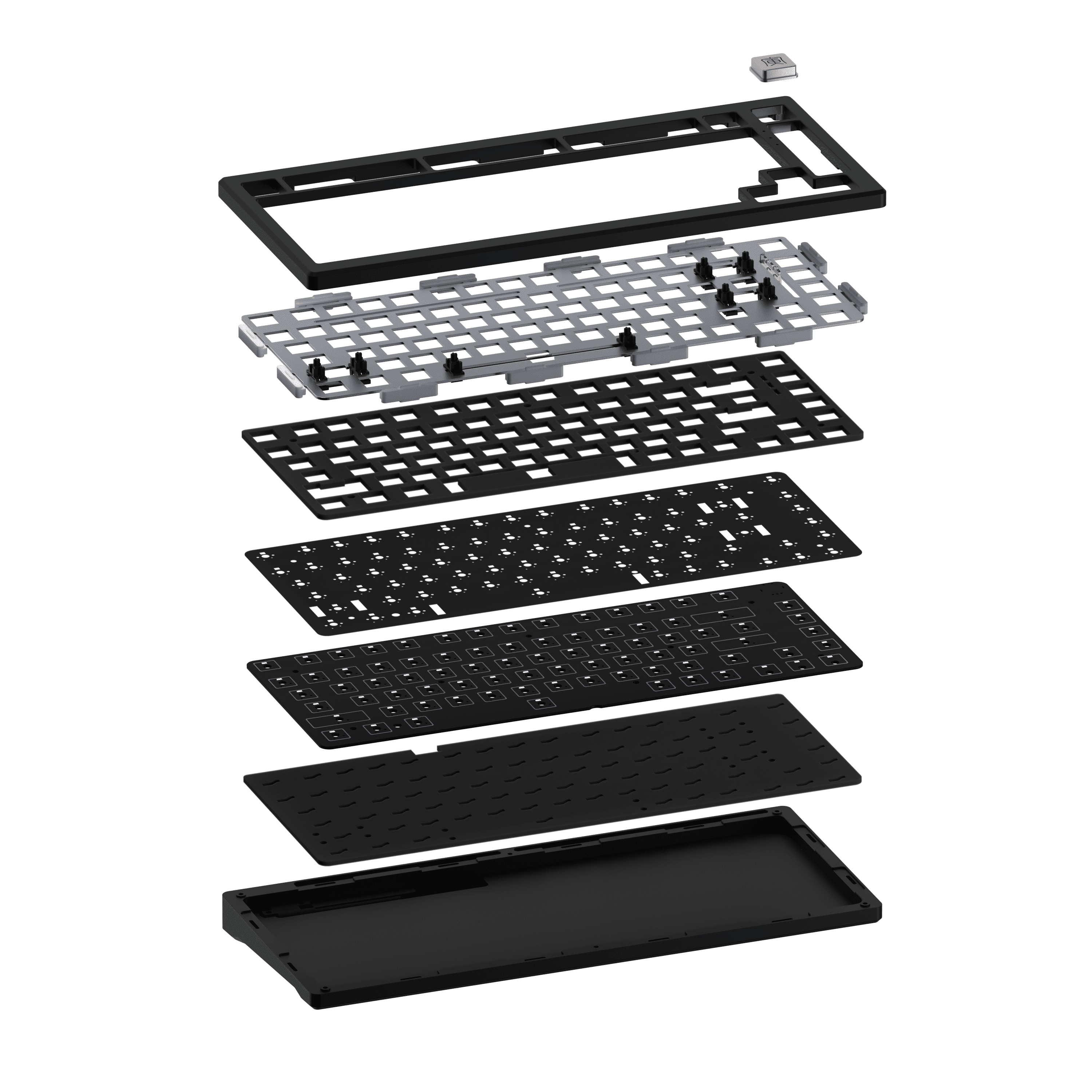

Sandwich Mounted with Double Muffled Foams
The MOD006 is assembled by sandwich mount / up-down structure, with the upper case on the top and the buttom case fit seamlessly, which can avoid wobbling at the bottom.
In the meanwhile, we are dedicated to reducing the the hollow sound from the keyboard. To reach this goal, this kit is also equipped with muffled foams at the bottom, as well as between the PCB and the mounting plate.
In this way, the keyboard presents a great silent atmosphere for typing experience.
Premium CNC Case
Aluminium is known for its structural integrity and weight. For MOD006
, every part of the aluminium case is made to fit together perfectly, at a total weight of 2kg. With this heavy case, the kit also avoids wobbling issues and gives a premium feeling to the keyboard.
RGB Backlight Available
RGB is such a cool element while playing games.AKKO MOD006 kit also knows your needs and thus this model is equipped with RGB SMD light. Being a work of technique, it's more than a keyboard.
PRODUCT SPECIFICATIONS
MODEL: MOD006
MATERIAL:Aluminium case
CONNECTIVITY:Type-C Cable
STRUCTURE:Gasket Mount
SOFTWARE:Support, updated by AKKO Cloud
PRODUCT DIMENSIONS:334mm(L)*146mm(W)*33mm(H)
WEIGHT:Around 1.45kg
Packaged Included:
Aluminum Top Case*1
Plate*1
Eva Foam*1
PCBA*1
Bottom Dampening Sheet*1
Aluminum Bottom Case*1
USB-A to USB-C Cable*1
Note: the keycaps and switches are not included
